PVC Open End Well Screens Sch40 or Sch80 ASTM D1785
When it comes to selecting the right PVC screens for your needs, understanding the standard dimensions and specifications is crucial. PVC screens are widely used in various applications due to their durability and resistance to corrosion. This guide explores standard dimensions, materials, and key benefits of PVC screens.
Standard PVC Screen Dimensions
Standard PVC screen lengths typically come in 5', 10', and 20' sizes. Additional lengths may also be available to meet specific project requirements. Slot sizes generally range from 0.006" to 0.500", providing flexibility for various applications.

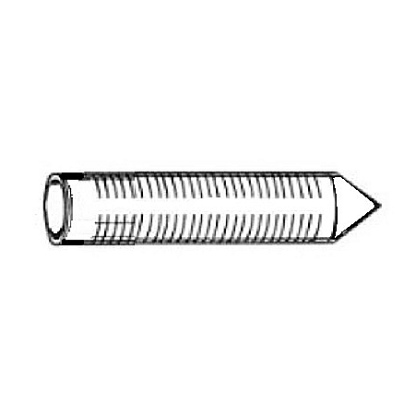

To specify the length and slot size, a T (Point) or P (Plug) suffix can be added. The designation MNPT refers to Male National Pipe Thread connections.
PVC Screen Mesh Size and Material
PVC screen mesh sizes vary depending on the application. Common spacing options include:
- 1/4" spacing
- 3/8" spacing
PVC is a durable, corrosion-resistant material that performs well in filtration, drainage, groundwater monitoring, and insect protection applications. The ideal mesh size depends on the specific use case and environmental conditions.
Available PVC Screen Sizes
We offer a variety of PVC screen sizes, including:
- 10" × 20' Screen Belled PVC SCH 40, 6 Row, 1/4" Spacing
- 12" × 20' Screen Belled PVC SCH 40, 7 Row, 1/4" Spacing
- 14" × 20' Screen Belled PVC SCH 40, 9 Row, 1/4" Spacing
- 16" × 20' Screen Belled PVC SCH 40, 9 Row, 1/4" Spacing
- 18" × 20' Screen Belled PVC SCH 40, 10 Row, 3/8" Spacing
- 24" × 20' Screen Belled PVC SCH 40, 13 Row, 3/8" Spacing
Frequently Asked Questions
- What are the standard dimensions of PVC screens?
- Standard PVC screen lengths are 5', 10', and 20', with slot sizes ranging from 0.006" to 0.500".
- What is the mesh size of PVC screens?
- Common PVC screen mesh spacings include 1/4" and 3/8".
- What are the benefits of using PVC screens?
- PVC screens are durable, corrosion-resistant, lightweight, and suitable for a wide range of filtration and screening applications.
